Precision
by design.

aluTM is the engineering and production partner for system manufacturers who depend on precision, consistency and long-term supply of their aluminium components.

Submit a drawingSee what we supply
10,000Standard moulds
5Alloys
1,200 tProfiles per month
9Markets

Scope of supply

Standard sections or a die built around your design

Choose from a large mould library, or have a custom die developed for your system. Tolerances, geometry and surface are specified to your drawing.

Markets served: Germany, Belgium, Netherlands, Poland, France, Italy, Austria, USA, Canada.

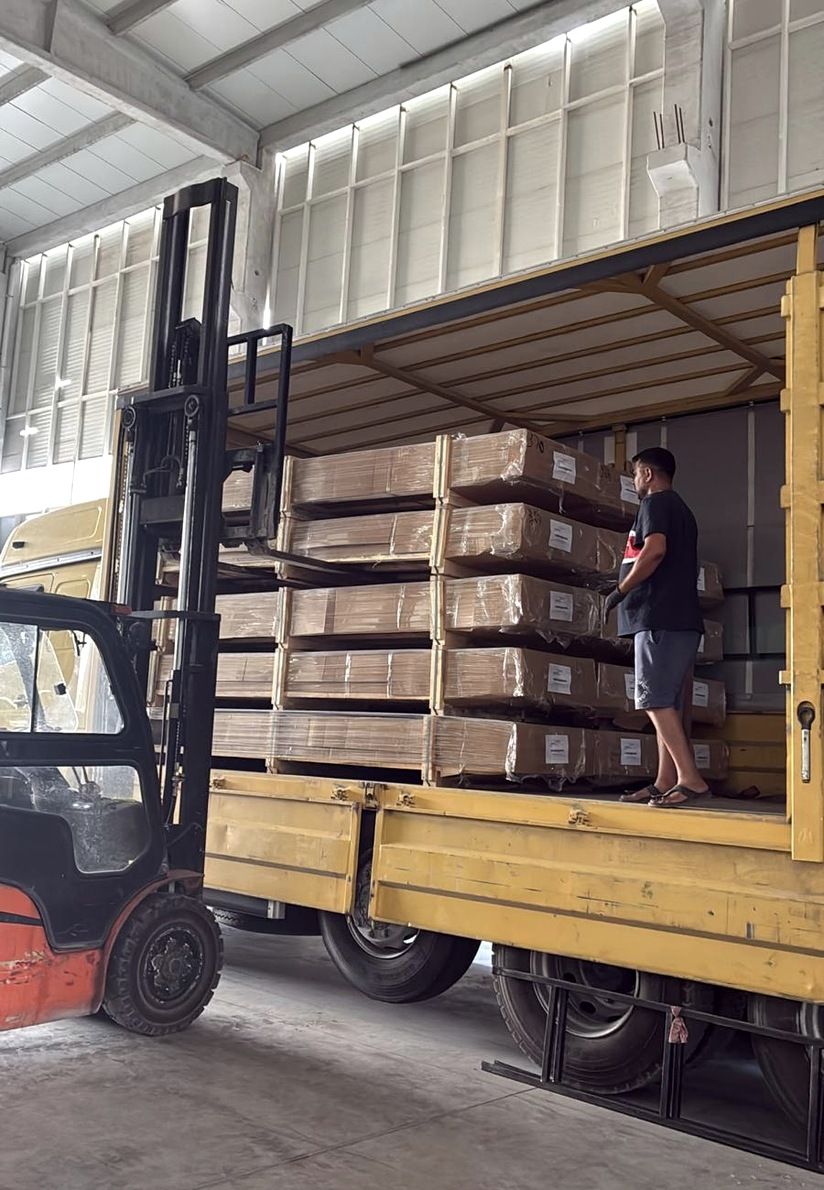

Packed profile crates being loaded by forklift
Loading at our plant
10,000Standard moulds
5Alloys6060 · 6063 · 6005 · 6463 · 6082
7.4 mMax. length, anodized
8.0 mMax. length, painted

Your drawing.
Our dies.
Every batch the same.

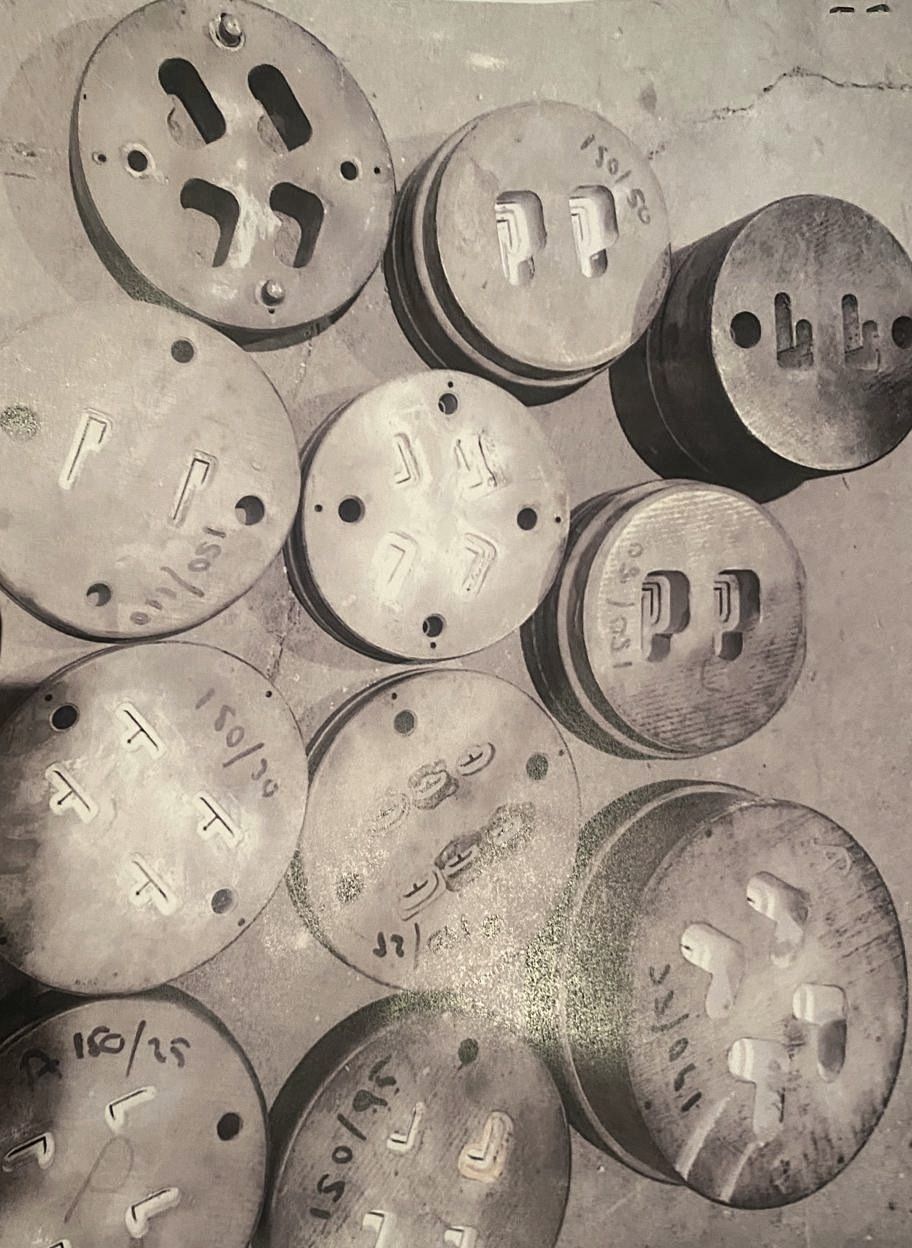

Extrusion dies

Production

Backed by real capacity

We combine die design, extrusion, anodizing, powder coating and machining in one integrated network.

Profile production
1,200 t / month
Anodizing
450 t / month
Powder coating
300 t / month
PressForceCapacity
4" line900 t100 t / month
5" line1,100 t160 t / month
6" line1,460 t250 t / month
6" line2,000 t350 t / month
7" line2,000 t350 t / month

Machining

  • CNC centres: 4+1, 3+1 and 3-axis
  • 5-axis precision cutting, 45° cutting
  • 11 eccentric presses, drilling and tapping

Quality

  • Checks at every production stage
  • Chemical and mechanical tests in the lab
  • Hardness (Brinell, Webster) and tensile testing

Process

From drawing to series

Four stages with a single contact throughout.

↺ Not approved: we adjust die or specification

Explore

Everything behind the profile

Short on time? Start here. Each page goes deeper into one part of how we work.

For design engineers

Profiles & range

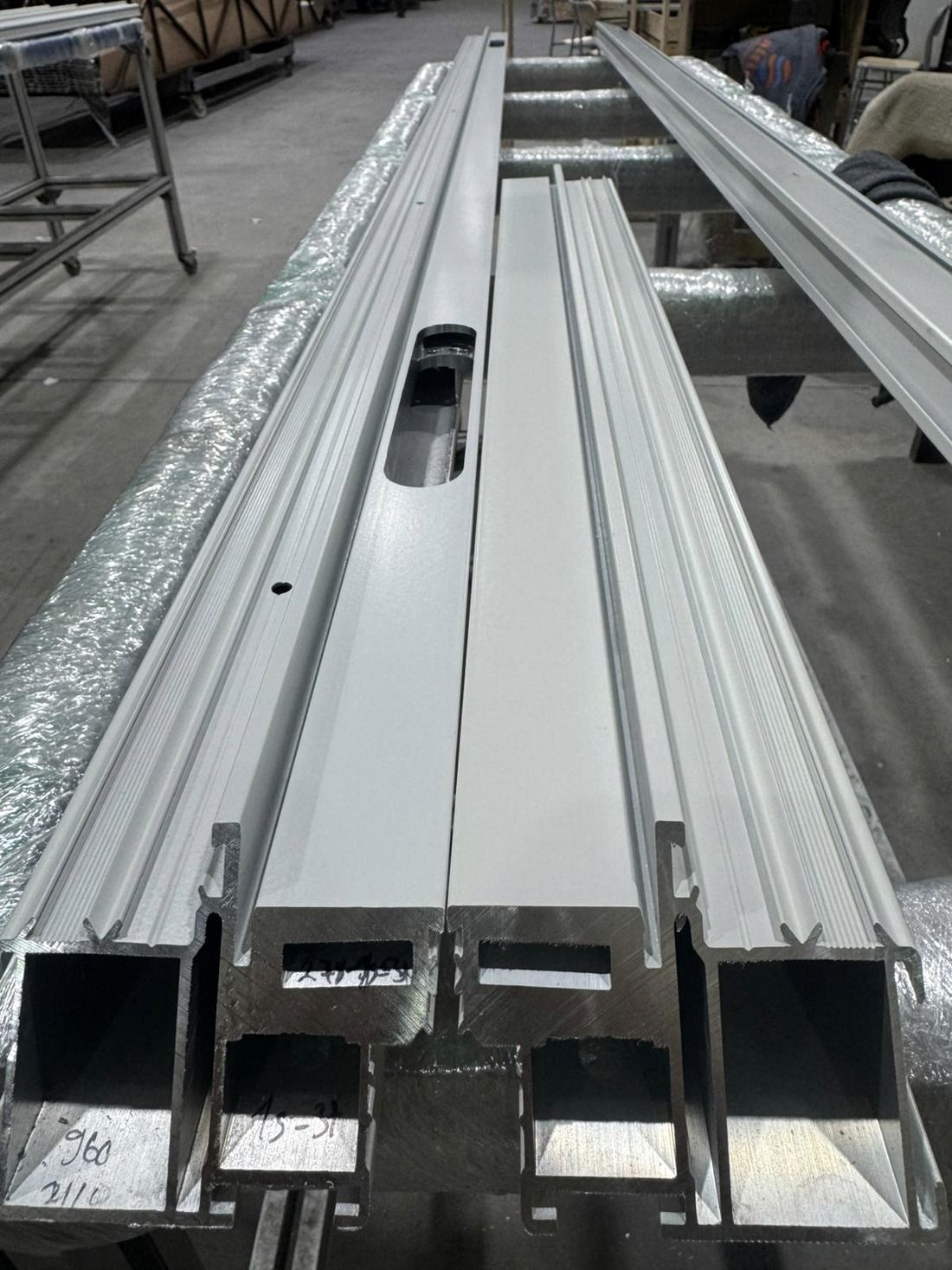

1,388 section drawings by application with article numbers and weights, how a profile is built, and a weight calculator.

Learn more
For purchasing and quality

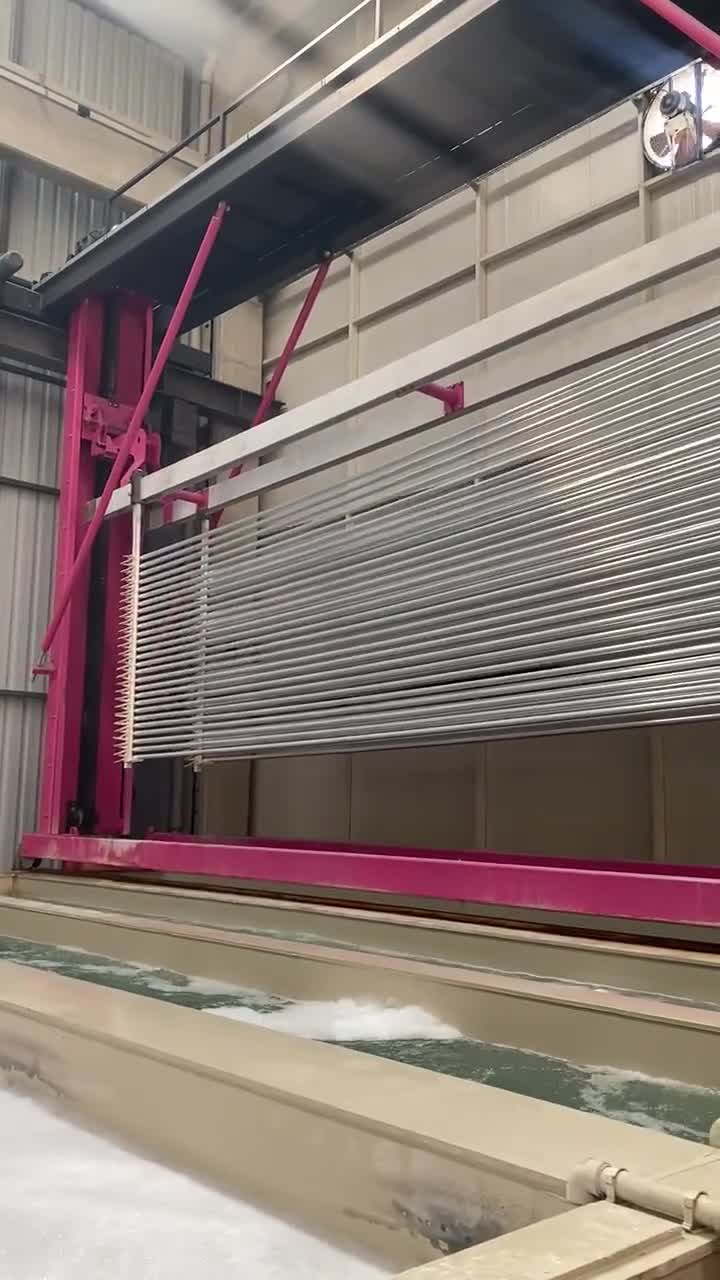

Surface treatment

Anodising, powder coating, grinding and polishing, plus alloys and machining.

Learn more
For logistics and planning

Shipping & packing

How we pack and load profiles for shipment, with photos from the plant.

Learn more
For sustainability and compliance

CBAM & sustainability

What CBAM means for your orders and how we approach sustainability.

Learn more

Quality and certification

Certified, not just claimed.

Management systems and product standards we hold. Current certificates are available on request.

  • TÜV Thüringen · TICISO 9001:2015Quality management
  • TÜV Thüringen · TICISO 14001:2015Environmental management
  • TÜV Thüringen · TICISO 45001:2018Occupational health and safety
  • KiwaISO/IEC 27001Information security management
  • KiwaEN 1090-1Structural aluminium components, EXC2, factory production control
  • KiwaEN 15088Structural products for construction, factory production control
  • TSETS EN 12020-1Precision extruded profiles, AW-6060 and AW-6063
  • Qualicoat · ArcoQualicoat · QualanodApproved powder coating and architectural anodising
  • TSETS EN 755-1Extruded profiles, EN AW-6063 and EN AW-6082

Issuing bodies as shown on our certificates.

Contact

Submit a drawing

Send a drawing, a specification or a sample part. We review it and come back with a clear proposal.

  • 1Drawing or sketch
  • 2Specification, alloy, finish
  • 3Quantities and delivery address

Prepare your request

Fill in what you know and attach your drawing. Send it straight to us, or create an e-mail text and send it yourself.

Selected profiles from the range
